CMF9008 Operating humidity <100%RH (no icing, no condensation) accurate ±1.5%F.S

Name: CMF9008 Operating humidity lt100RH no icing no condensation accurate 15FS
Brand: Consensic
Price: 1 USD

Brand Name : Consensic

Model Number : CMF9008

Certification : PTC23091116101C-CN01

Place of Origin : WUXI

MOQ : Please contact us for details

Price : Offline conversation or face-to-face discussion

Payment Terms : L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability : 999

Delivery Time : 3-7 work days

accurate : ±1.5%F.S

repeatable : 0.25

Maximum pressure : 0.5 (customizable up to 0.8)MPa

Operating humidity : <100%RH (no icing, no condensation)

Contact Now

Parameterization for CMF9008

Functional Item: CMF9008
Temperature:Medium temperature (-10~65), ambient temperature
Performance Parameters:

Norm	CMF9008 Operating humidity <100%RH (no icing, no condensation) accurate ±1.5%F.S
Thoroughfare (mm)	8
Range Ratio	100:1
Power Supply	7~24 VDC, 50mA (customizable)
Accuracy	±1.5 %FS
Repeatability	0.25 %
Response Time	67 ms (default, customizable)
Maximum Pressure	0.5 MPa (customizable up to 0.8 MPa)
Communication Method	RS485 (MODBUS)
Output Method	Analog output 1-5 VDC
	4-20mA (optional equipment)
Temperature	Medium temperature (-10~65°C), Ambient temperature (-25~85°C)
Display Mode	Instantaneous Flow: SLPM; Cumulative Flow: SL
Calibration Condition	Air, 20°C, 101.325 kPa
Weights (kg)	0.215
Connector	R3/8”
Operating Humidity	<100% RH (no icing, no condensation)

Differentiation:

High Accuracy: Ensures precision with ±1.5 %FS accuracy.
Repeatability: High repeatability at 0.25 %.
Customizable Response Time: Default 67 ms, adjustable to meet specific needs.
Variable Power Supply: Operates on a wide voltage range of 7~24 VDC.
Robust Communication: Utilizes RS485 (MODBUS) for reliable data transmission.
Versatile Output Methods: Supports both analog (1-5 VDC) and 4-20mA outputs.
Wide Operating Conditions: Functions effectively in diverse temperature and humidity ranges.
Customizable Connectors and Pressure Ratings: Adapts to various installation requirements.
Real-Time and Cumulative Flow Display: Provides both instantaneous and cumulative flow readings.

The CMF9008 is designed for precision and reliability across a range of industrial and environmental conditions, making it a versatile choice for accurate flow measurement.
Overall Dimensions
CMF9008 Operating humidity <100%RH (no icing, no condensation) accurate ±1.5%F.S

CMF9008 Operating humidity <100%RH (no icing, no condensation) accurate ±1.5%F.S Manufactures

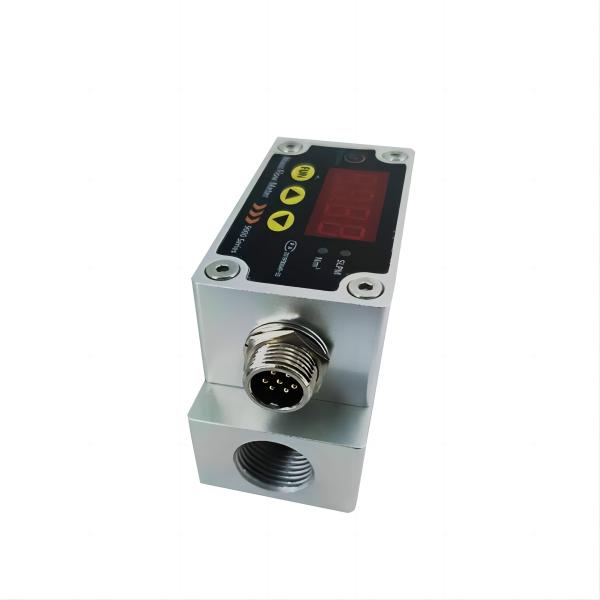

CMF9008 Operating humidity <100%RH (no icing, no condensation) accurate ±1.5%F.S Images
